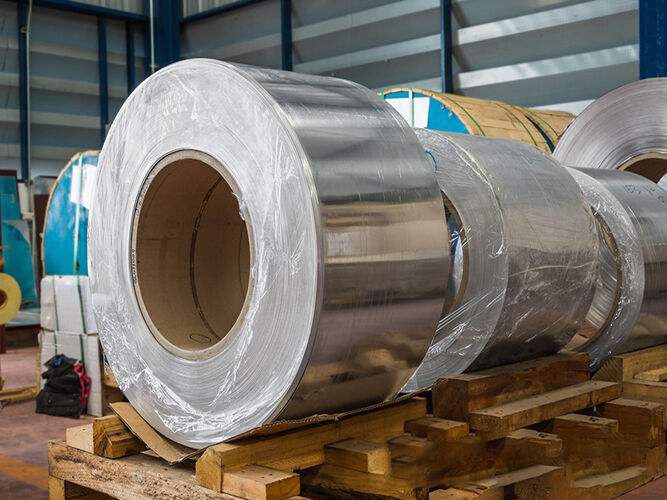

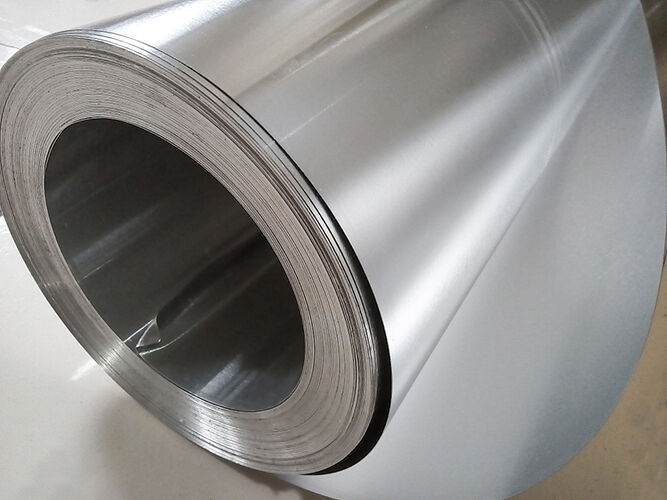

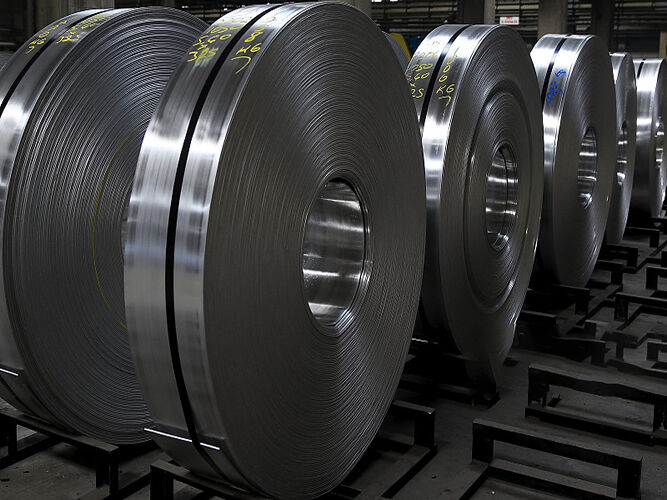

5086 Aluminum Coil

Characteristics


5086 alumium is a 5000-series aluminum alloy: the main alloy alloying addition is magnesium and it is formulated for primary forming into wrought products. 5086 is the Aluminum Association (AA) designation for this material. In European standards, it will be given as EN AW-5086. AlMg4 is the EN chemical designation. A95086 is the UNS number. Additionally, the AFNOR (French) designation is A-G4MC.


We can provide full series of aluminum products, 1000 series, 2000 series, 3000 series, 5000 series, 6000 series, 7000 series, 8000 seires. Welcome to contact us, we will quote you a reasonable price.


Description


Product Name5086 Aluminum
Alloy5086 aluminum are alloyed with magnesium and derive most of their strength from work-hardening.
TemperH12,H14,H16,H18,H19 etc.
Thickness0.1mm to 10mm
WidthFor coil: 600mm ~ 2000mm, or as customize
For sheet: 20mm ~ 2200mm, or as customize
Weight/CoilAs the customer's request
MOQ3 ton
Delivery timeAound 30 days
Payment termsT/T  L/C
Container20ft: 5898mm(L)*2352mm(W)*2393mm(H)  Loading 18-25 tons         40ft:12032mm(L)*2352mm(W)*2393mm(H)  Loading  25-27 tons
Packing3 layers of packing. Inside is craft paper, Middle is water plastic film and outside GI steel sheet to be covered by steel strips


Chemical Composition


Chemical Composition %

SiFeCuMnMgZrCrZnTiResiduals
5086≤0.40≤0.50≤0.100.2-0.73.5-4.5/0.05-0.25≤0.25≤0.15≤0.15



Mechanical Properties


Mechanical Properties
PropertyValue
Tensile Strength270 to 390 MPa
Yield Strength110 to 320 MPa
Elongation1.7 to 20%
Shear Strength220 to 250 MPa


Tempers


  • 5086-F Aluminum

  • 5086-H111 Aluminum

  • 5086-H112 Aluminum

  • 5086-H116 Aluminum

  • 5086-H12 Aluminum

  • 5086-H14 Aluminum

  • 5086- H16 Aluminum

  • 5086-H18 Aluminum

  • 5086- H22 Aluminum

  • 5086-H24 Aluminum

  • 5086-H26 Aluminum

  • 5086-H28 Aluminum

  • 5086-H32 Aluminum

  • 5086-H321 Aluminum

  • 5086-H32 Aluminum

  • 5086-H34 Aluminum

  • 5086-H36 Aluminum

  • 5086-H38 Aluminum

  • 5086-O Alumium



Fabrication and Heat Treatment



Annealing

Aluminum 5086 alloy can be annealed at 343 ℃ and cooled in air.



Cold working

Aluminum 5086 alloy has excellent cold working charateristics in the O temper and less good H38 and H36 temper.



Welding

Conventional methods are suitable for welding Aluminum 5086 alloy. Excellent results can be obtained when electric arc welding is used for this alloy.



Forging

Aluminum 5086 alloy can be forged.


Application

  • Missile components

  • Welded pressure vessels

  • Auto aircraft cryogenics

  • TV towers

  • Drilling rigs

  • Transportation equipment

  • Marine parts







Process Flow




FAQ

1. Q:Are you a manufacturer or trading company?

   A: We are a manufacturer, can do OEM and ODM.



2. Q: Can i get some samples? What product information do i need to provide?

   A: Yes, we have small samples, like A4 size. You need to provide the grade (ALLOY NUMBER) and temper, thickness, width,length and the quantity.



3. Q: How does your factory do regarding quality control?

   A: Quality is priority. Our factory has gained SGS authentication. We guarantee the goods out form our factory 100% qualified. And each process, we have very strict operation and arrange 2          technicians to inspect. After the products are finished, we will make the last test to pick up the unqualified products.



4. Q：What is your payment?

   A: Generally we accept 30% T/T as deposit and 70% against with B/L copy



Packing & Shipping


包装 图.jpg

包装 图片.jpg
