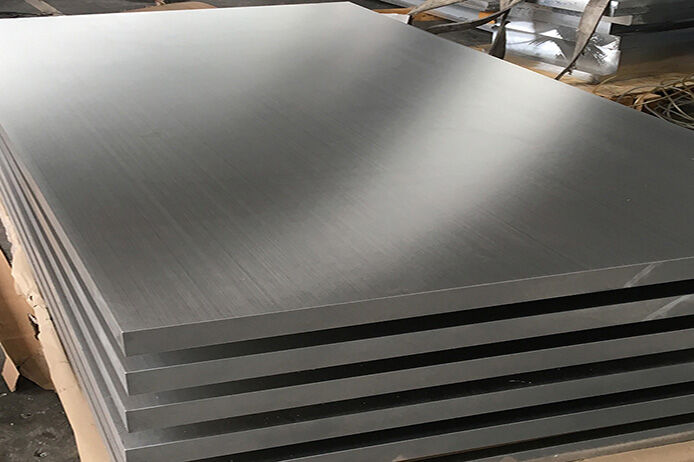

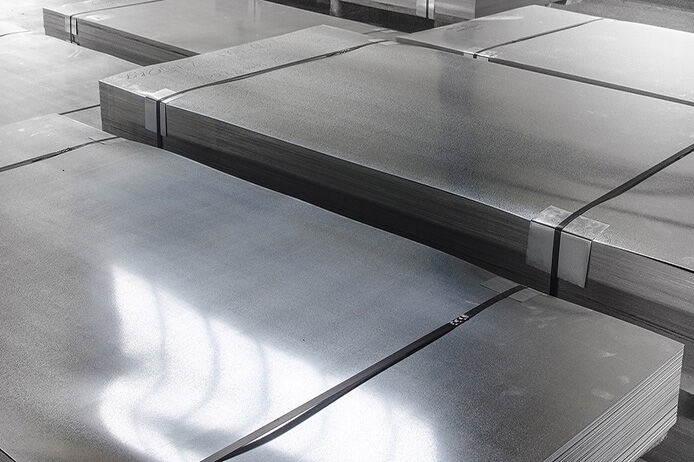

6005 Aluminum Plate
Size:

Thickness:0.2mm~12.0mm

Width:600mm-2650mm or customize

Standard: GB/T3880.2–2006


Characteristics:

6005 aluminum is a 6000-series aluminum alloy: there is significant alloying with both magnesium and silicon, and the alloy is formulated for primary forming into wrought products. 6005 is the Aluminum Association (AA) designation for this material. In European standards, it will be given as EN AW-6005. And A96005 is the UNS number.


We can provide full series of aluminum products, 1000 series, 2000 series, 3000 series, 5000 series, 6000 series, 7000 series, 8000 seires. Welcome to contact us, we will quote you a reasonable price.

Description


Product Name6005 Aluminum Plate
Alloy6005 aluminum are alloyed with magnesium and silicon, are easy to machine and can be precipitation hardened that not to the high strength that 2000 and 7000 series can reach.
TemperT1,T4,T5,T6 etc.
Thickness0.2mm to 12mm
WidthFor coil: 600mm ~ 2000mm, or as customize
For sheet: 20mm ~ 2200mm, or as customize
Weight/CoilAs the customer's request
MOQ3 ton
Delivery timeAound 30 days
Payment termsT/T  L/C
Container20ft: 5898mm(L)*2352mm(W)*2393mm(H)  Loading 18-25 tons         40ft:12032mm(L)*2352mm(W)*2393mm(H)  Loading  25-27 tons
Packing3 layers of packing. Inside is craft paper, Middle is water plastic film and outside GI steel sheet to be covered by steel strips



Chemical Composition


Chemical Composition %

SiFeCuMnMgCrVZnTiResiduals
60050.6-0.9≤0.35≤0.10≤0.100.4-0.6≤0.10/≤0.10≤0.10≤0.15


Mechanical Properties



Mechanical Properties
PropertyValue
Tensile Strength190 to 310Mpa
Yield Strength
100 to 280Mpa
Elongation
9.5 to 17%
Shear Strength120 to 210Mpa


Application:

  • Tubing for furniture

  • Railway and bus profile structure

  • Pylons, platforms and pipelines

  • Portable ladders

  • Sections where greater strength is needed than given by 6060 and 6063





Tempers:

  • 6005-T1 Aluminum

  • 6005-T4 Aluminum

  • 6005-T5 Aluminum

  • 6005-T6 Aluminum

  • 6005-T61 Aluminum



Process Flow



FAQ

1. Q:Are you a manufacturer or trading company?

   A: We are a manufacturer, can do OEM and ODM.



2. Q: Can i get some samples? What product information do i need to provide?

   A: Yes, we have small samples, like A4 size. You need to provide the grade (ALLOY NUMBER) and temper, thickness, width,length and the quantity.



3. Q: How does your factory do regarding quality control?

   A: Quality is priority. Our factory has gained SGS authentication. We guarantee the goods out form our factory 100% qualified. And each process, we have very strict operation and arrange 2 technicians to inspect. After the products are finished, we will make the last test to pick up the unqualified products.



4. Q：What is your payment?

   A: Generally we accept 30% T/T as deposit and 70% against with B/L copy
