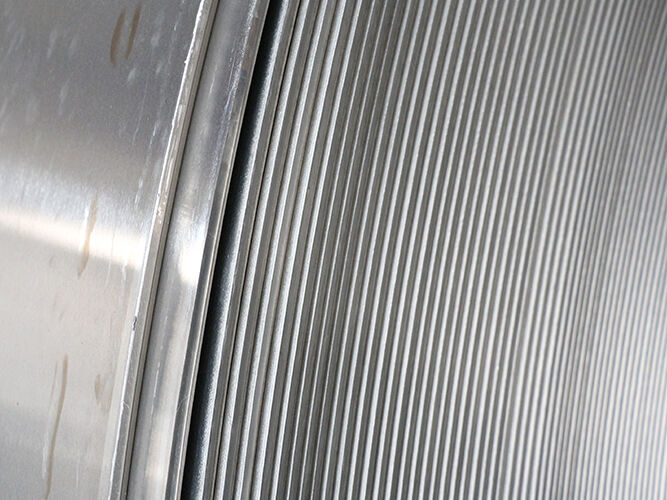

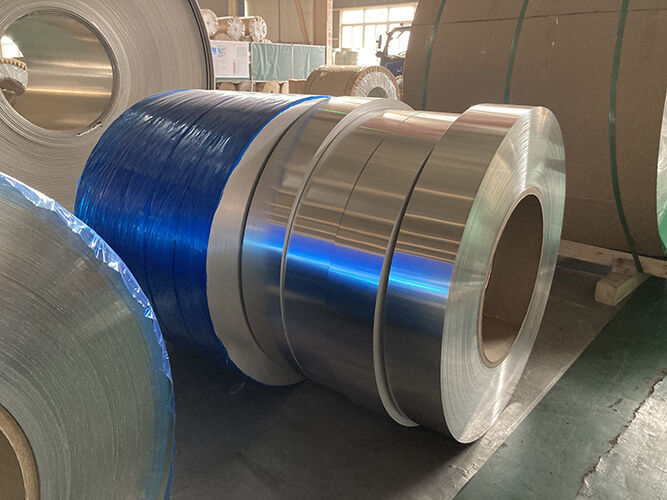

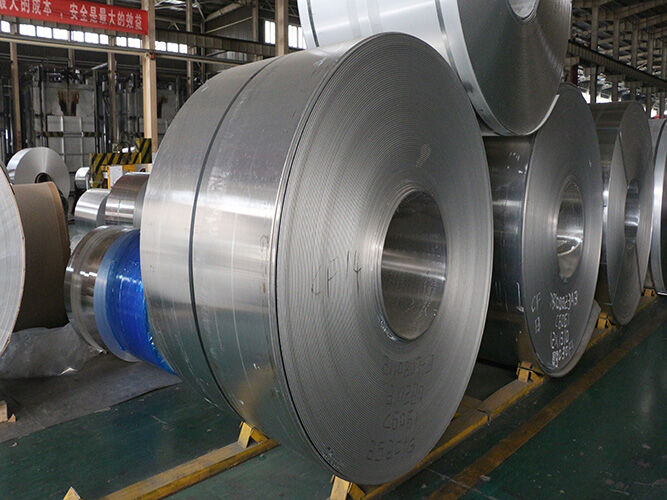

6061 Aluminum Coil

Characteristics


6061 aluminum is a 6000-series aluminum alloy: there is significant alloying with both magnesium and silicon, and the alloy is formulated for primary forming into wrought products. 6061 is the Aluminum Association (AA) designation for this material. In European standards, it will be given as EN AW-6061. And A96061 is the UNS number.


We can provide full series of aluminum products, 1000 series, 2000 series, 3000 series, 5000 series, 6000 series, 7000 series, 8000 seires. Welcome to contact us, we will quote you a reasonable price.

Description


Product Name6061 Aluminum
Alloy6061 aluminum are alloyed with magnesium and silicon, are easy to machine and can be precipitation hardened that not to the high strength that 2000 and 7000 series can reach.
TemperH12,H14,H16,H18,H19 etc.
Thickness0.1mm to 10mm
WidthFor coil: 600mm ~ 2000mm, or as customize
For sheet: 20mm ~ 2200mm, or as customize
Weight/CoilAs the customer's request
MOQ3 ton
Delivery timeAound 30 days
Payment termsT/T  L/C
Container20ft: 5898mm(L)*2352mm(W)*2393mm(H)  Loading 18-25 tons         40ft:12032mm(L)*2352mm(W)*2393mm(H)  Loading  25-27 tons
Packing3 layers of packing. Inside is craft paper, Middle is water plastic film and outside GI steel sheet to be covered by steel strips


Chemical Composition


Chemical Composition %

SiFeCuMnMgCrVZnTiResiduals
60610.3-0.60.1-0.3≤0.10≤0.100.8-1.20.04-0.35/≤0.15≤0.10≤0.15



Mechanical Properties


Mechanical Properties
PropertyValue
Tensile Strength130 to 410 MPa
Yield Strength76 to 370 MPa
Elongation3.4 to 20%
Shear Strength84 to 210 MPa


Tempers

  • 6061-O Aluminum

  • 6061-T1  Aluminum

  • 6061-T4 Aluminum

  • 6061-T42 Aluminum

  • 6061-T451 Aluminum

  • 6061-T4510 Aluminum

  • 6061-T4511 Aluminum

  • 6061-T51 Aluminum

  • 6061-T6 Aluminum

  • 6061-T62 Aluminum

  • 6061-T651 Aluminum

  • 6061-T6510 Aluminum

  • 6061-T6511 Aluminum

  • 6061-T652 Aluminum

  • 6061-T89Aluminum

  • 6061-T94 Aluminum


Other Designations


AMS 4117ASTM B247ASTM B429DIN 3.3211MIL G-18014QQ A-200/8
ASTM B209ASTM B307ASTM B483MIL A-12545MIL G-18015QQ A-225/8
ASTM B210ASTM B313ASTM B547MIL A-22771MIL P-25995QQ A-250/11
ASTM B211ASTM B316ASTM B548MIL F-17132AMIL T-7081QQ A-367
ASTM B221ASTM B345ASTM B632MIL F-18280MIL W-23351QQ A-430
ASTM B234ASTM B361ASTM F467MIL F-39000MIL W-85QQ WW-T-700/6
ASTM B241ASTM B404ASTM F468MIL F-3922QQ A-200/16SAE J454


Fabrication and Heat Treatment


Machinability

Aluminium / Aluminum 6061 alloy has good machinability in harder T 4 and T6 tempers. It can be machined in an annealed temper.

Forming

Aluminium / Aluminum 6061 alloy can be easily formed and worked in the annealed condition. The standard methods are used to perform bending, stamping, deep drawing, and spinning operations.

Welding

Aluminium / Aluminum 6061 alloy has excellent weldability. Thinner sections can be welded using the gas tungsten arc welding technique.

Forging

Aluminium / Aluminum 6061 alloy is forged at 233 to 483°C (750 to 900°F).


Application


  • Truck and marine components

  • Furniture

  • General structural and high-pressure applications

  • Pipelines

  • Heavy-duty structures

  • Railroad cars

  • Tank Fittings




Process Flow



FAQ


1. Q:Are you a manufacturer or trading company?

   A: We are a manufacturer, can do OEM and ODM.



2. Q: Can i get some samples? What product information do i need to provide?

   A: Yes, we have small samples, like A4 size. You need to provide the grade (ALLOY NUMBER) and temper, thickness, width,length and the quantity.



3. Q: How does your factory do regarding quality control?

   A: Quality is priority. Our factory has gained SGS authentication. We guarantee the goods out form our factory 100% qualified. And each process, we have very strict operation and arrange 2 technicians to inspect. After the products are finished, we will make the last test to pick up the unqualified products.



4. Q：What is your payment?

   A: Generally we accept 30% T/T as deposit and 70% against with B/L copy


Packing & Shipping


包装 图.jpg

包装 图片.jpg
