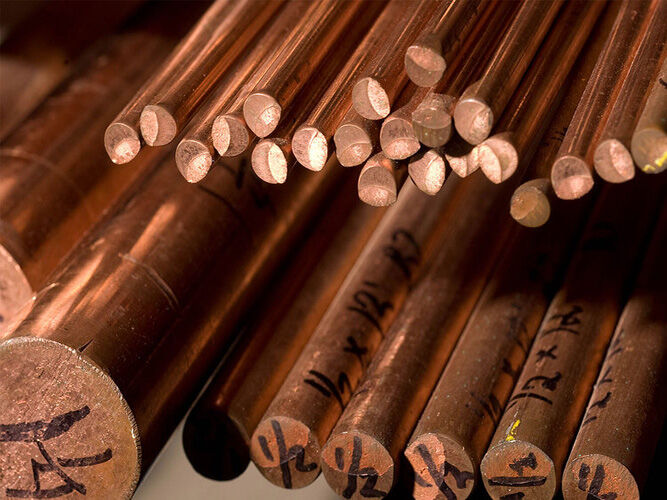

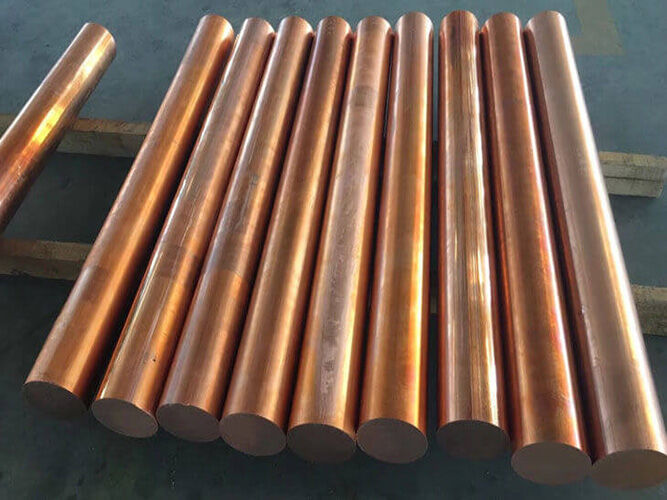

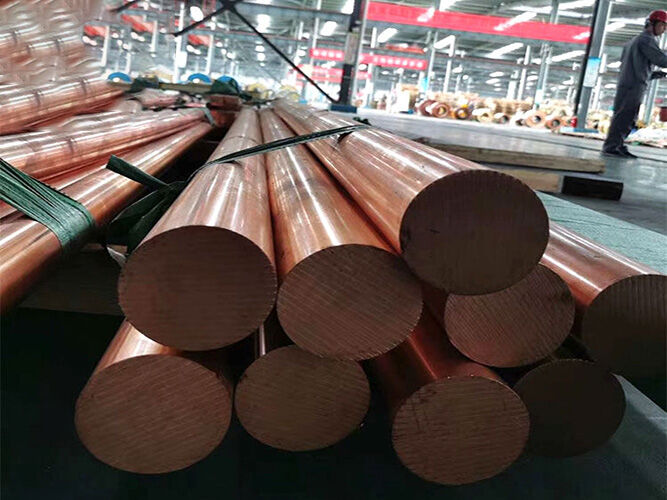

Copper Bar

Copper Round Bar

OD: 3.0mm-800mm

Length: 2500mm,3000mm and customizable

Copper Flat Bar

Thickness: 5.0mm-300mm

Length: 500mm-12000mm

We can provide full range of copper products, please contact us freely.

Contact:

Email:joyce@huacimetal.com

Whatsapp/Wechat: +86 133 8387 7169

Specification

Product Name	Copper Bar
Material	T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C65500, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, C72200, etc.
Standard	ASTM B280 ASME SB280/ ASTM B68 ASME SB68
Copper Bar Form	Square,Round,Rectangular etc.
Surface	Mill, polished, bright, oiled, hair line, brush, mirror, sand blast, or as required.
MOQ	1 tons
Container Size	20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)

Chemical Composition

Grade	Chemical Compostion(%)
	GB	JIS	Cu+Ag	P	Bi	Sb	As	Fe	Ni	Pb	Sn	S	Zn	O
Refined Copper	T1	C1020	99.95	0.001	0.001	0.002	0.002	0.005	0.002	0.003	0.002	0.005	0.005	0.02
	T2	C1100	99.9	-	0.001	0.002	0.002	0.005	-	0.005	-	0.005	-	-
	T3	C1221	99.7	-	0.002	-	-	-	-	0.01	-	-	-	-
Oxygen Free Copper	TU0	C1011	99.99	0.0003	0.0001	0.0004	0.0005	0.001	0.001	0.0005	0.0002	0.0015	0.0001	0.0005
	TU1	C1020	99.97	0.002	0.001	0.002	0.002	0.004	0.002	0.003	0.002	0.004	0.003	0.002
	TU2	C1020	99.95	0.002	0.001	0.002	0.002	0.004	0.002	0.004	0.002	0.004	0.003	0.003

Application:

Auto Parts
Communication connectors
Precision hardware

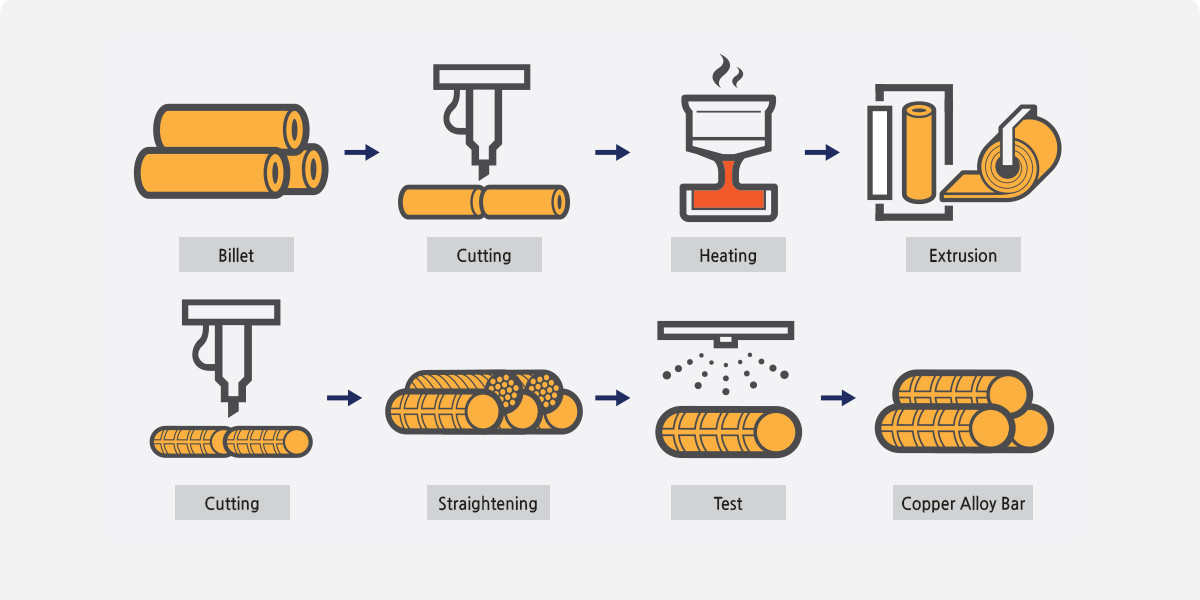

Production Process

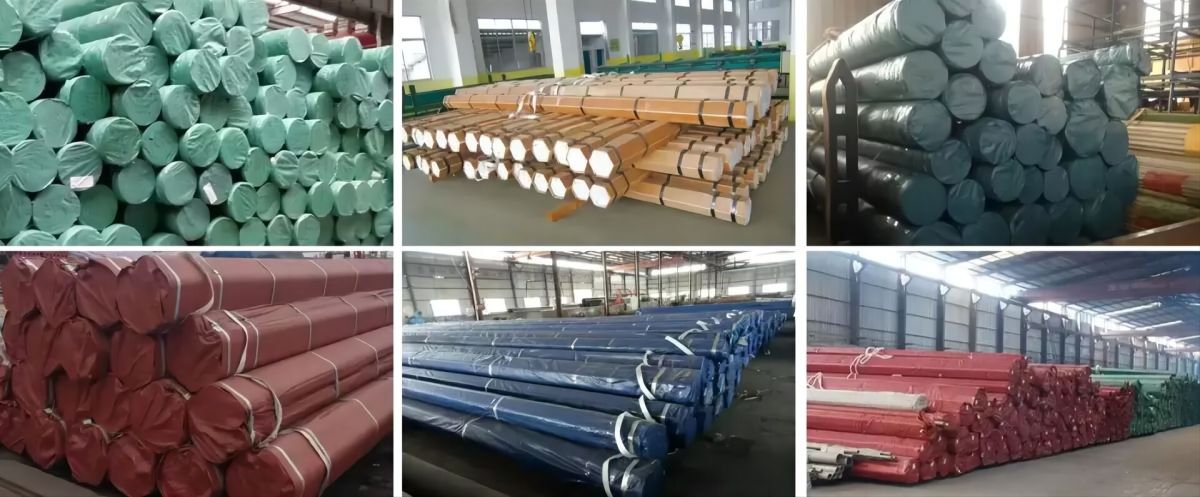

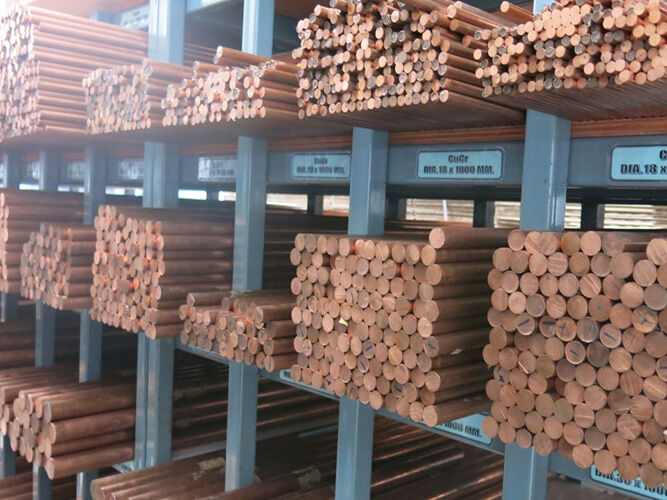

Warehouse Showing

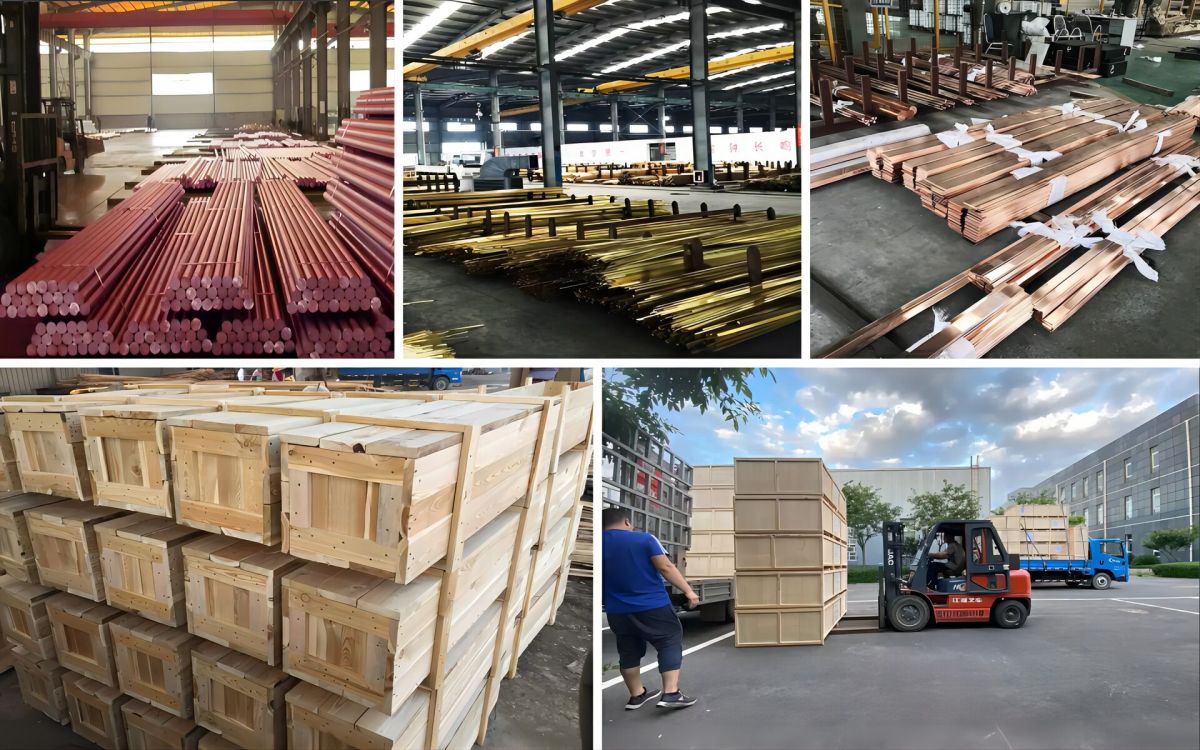

Packing & Shipment


FAQ

1. Q:Are you a manufacturer or trading company?

A: We are a manufacturer, can do OEM and ODM.

2. Q: Can i get some samples? What product information do i need to provide?

A: Yes, we have small samples, like A4 size. You need to provide the grade (ALLOY NUMBER) and temper, thickness, width,length and the quantity.

3. Q: How does your factory do regarding quality control?

A: Quality is priority. Our factory has gained SGS authentication. We guarantee the goods out form our factory 100% qualified. And each process, we have very strict operation and arrange 2 technicians to inspect. After the products are finished, we will make the last test to pick up the unqualified products.

4. Q：What is your payment?

A: Generally we accept 30% T/T as deposit and 70% against with B/L copy
