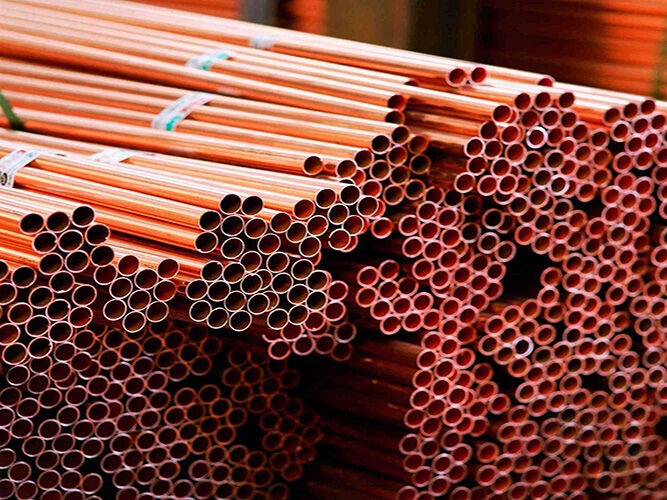

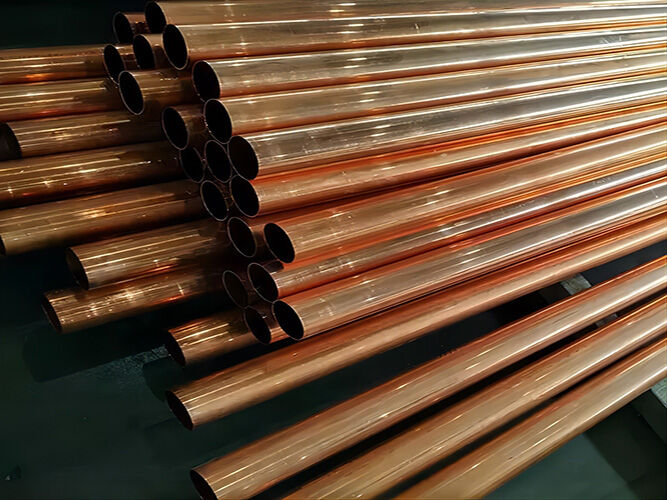

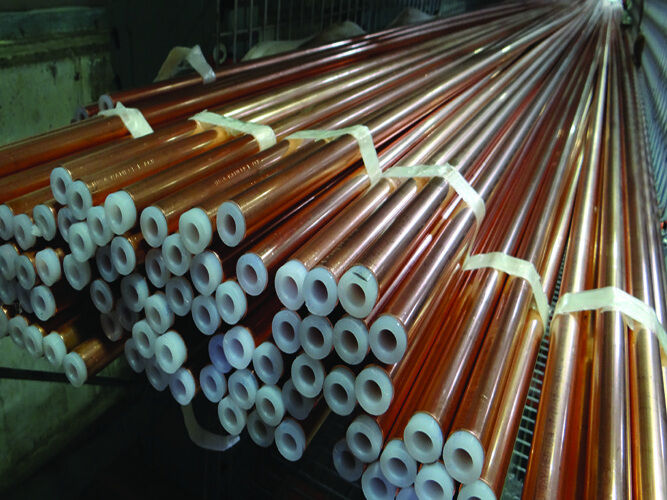

Copper Pipe

Copper Round Pipe

Wall Thickness: 0.2mm*120mm

Outside Diameter: 2.0mm*910mm

Copper Square Pipe

Wall Thickness: 0.2mm*120mm

Size: 2.0mm*2.0mm-1016mm*1016mm

Copper Rectangular Pipe

Wall Thickness: 0.2mm*910mm

Size:2.0mm*4.0mm-1016mm*1219mm

We can provide full range of copper products, please contact us freely.

Contact:

Email:joyce@huacimetal.com

Whatsapp/Wechat: +86 133 8387 7169

Specification

Product Name	Copper Pipe
Material	T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C65500, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, C72200, etc.
Standard	ASTM B280 ASME SB280/ ASTM B68 ASME SB68
Copper Pipe Form	Hollow,Square,Round,Rectangular, Straight Pipes,Hydraulic Etc.
Copper Pipe Schedule	SCH5,SCH10,SCH40,STD,SCH80,SCH160
Surface	Mill, polished, bright, oiled, hair line, brush, mirror, sand blast, or as required.
Copper Alloy Pipe End	Plain End, Beveled End, Treaded
Copper Pipe Thickness	1/16 hard, 1/8 hard, 3/8 hard, 1/4 hard, 1/2hard, full hard, soft etc
MOQ	1 tons
Application	Copper coil have strong, corrosion resistant properties, and become a modern contractor in all of commodity house pipes, heating,
Container Size	20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)

Chemical Composition

Grade	Chemical Compostion(%)
	GB	JIS	Cu+Ag	P	Bi	Sb	As	Fe	Ni	Pb	Sn	S	Zn	O
Refined Copper	T1	C1020	99.95	0.001	0.001	0.002	0.002	0.005	0.002	0.003	0.002	0.005	0.005	0.02
	T2	C1100	99.9	-	0.001	0.002	0.002	0.005	-	0.005	-	0.005	-	-
	T3	C1221	99.7	-	0.002	-	-	-	-	0.01	-	-	-	-
Oxygen Free Copper	TU0	C1011	99.99	0.0003	0.0001	0.0004	0.0005	0.001	0.001	0.0005	0.0002	0.0015	0.0001	0.0005
	TU1	C1020	99.97	0.002	0.001	0.002	0.002	0.004	0.002	0.003	0.002	0.004	0.003	0.002
	TU2	C1020	99.95	0.002	0.001	0.002	0.002	0.004	0.002	0.004	0.002	0.004	0.003	0.003

Application

1. The copper pipe are made of pure electrolysis copper

2. They are precise in size and smooth on surface

3. They are widely used for heat ex-changers, radiator, coolers, elector-heat-up pipe, air conditioner and refrigerators

4. Copper straight pipes can be used for oil transportation, brake pipes,water pipes and gas pipes for construction

5. Copper pipe are of good heat conductibility

Test

1. Hardness Test

2. Mechanical Testing such as tensile of area

3. Pitting Resistance Test

4. Chemical Analysis-Spectro Analysis

5. Intergranular Corrosion (IGC) Test

6. Flattening Test

7. Micro and Macro Test

8. Positive Material identification --PMI Testing

9. Flaring Test

Packing & Shipping

FAQ

1. Q:Are you a manufacturer or trading company?

A: We are a manufacturer, can do OEM and ODM.

2. Q: Can i get some samples? What product information do i need to provide?

A: Yes, we have small samples, like A4 size. You need to provide the grade (ALLOY NUMBER) and temper, thickness, width,length and the quantity.

3. Q: How does your factory do regarding quality control?

A: Quality is priority. Our factory has gained SGS authentication. We guarantee the goods out form our factory 100% qualified. And each process, we have very strict operation and arrange 2 technicians to inspect. After the products are finished, we will make the last test to pick up the unqualified products.

4. Q：What is your payment?

A: Generally we accept 30% T/T as deposit and 70% against with B/L copy
